LatticeCam: AR Site Grid

About LatticeCam: AR Site Grid

LatticeCam is a private AR site-grid planner. Lay out a patio, deck, garden beds, a slab, a tiled floor or a gallery wall: enter the size and spacing, get every stake point and square check, then see the same grid placed on the real surface.

PLAN THE LAYOUT
• Width, depth and grid spacing in metric or imperial units, converted in place
• Every stake point lettered A1, B1, C1… with X, Y and distance from A1
• Grid lines, full cells, area and perimeter
• Corner-to-corner diagonal and a 3-4-5 square check sized to your site
• A plan diagram drawn from your numbers

SEE IT ON SITE

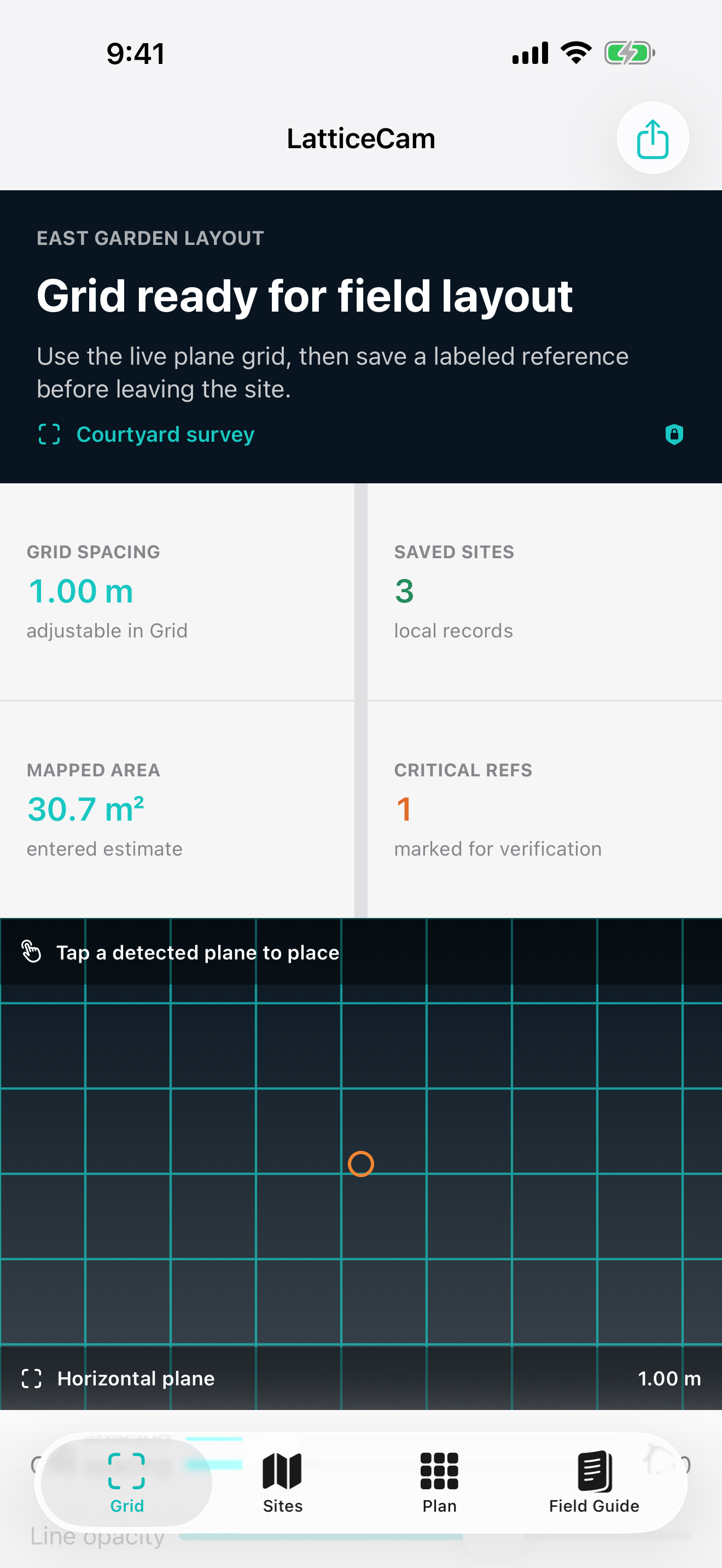

• Live ARKit grid on floors, ground or walls
• The grid matches your site's real rectangle and spacing, with the A1 corner highlighted
• Rotate in 15° steps, adjust line opacity, and tap again to move it
• Capture snapshots stamped with the site, spacing, surface and time

KEEP THE FIELD RECORD

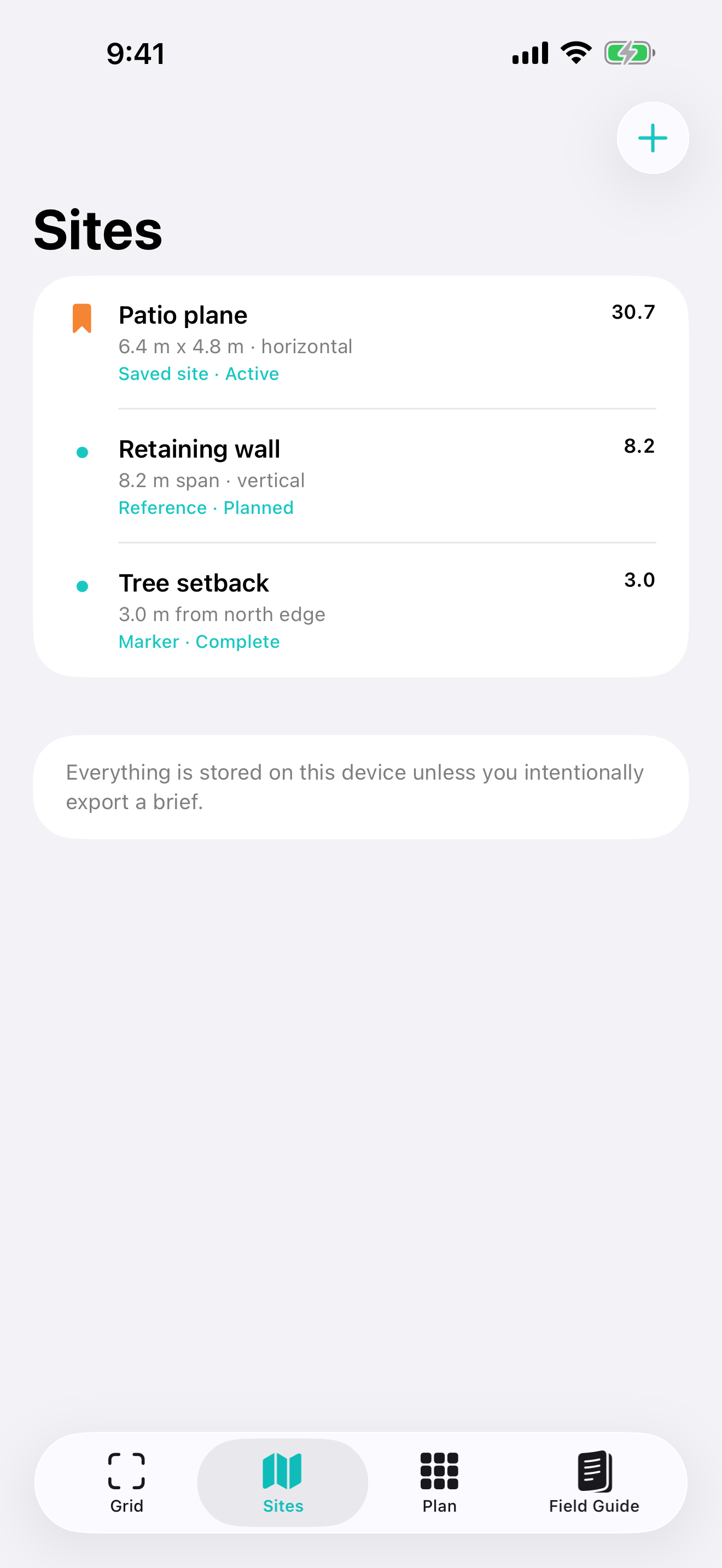

• Sites with status, "verify before layout" flags, A1 orientation notes and notes
• Follow-ups with owners and due dates, linked to sites
• An overview of measured area, stake points, sites to verify and overdue follow-ups

SHARE AND BACK UP
• Multi-page PDF field brief: a summary page plus one page per site with its plan, numbers and snapshots
• Stake-out CSV for spreadsheets and CAD
• A backup file that includes snapshots. Restore merges and never deletes your existing sites

MORE
• Siri and Shortcuts: "Open AR grid in LatticeCam" and "New site in LatticeCam"

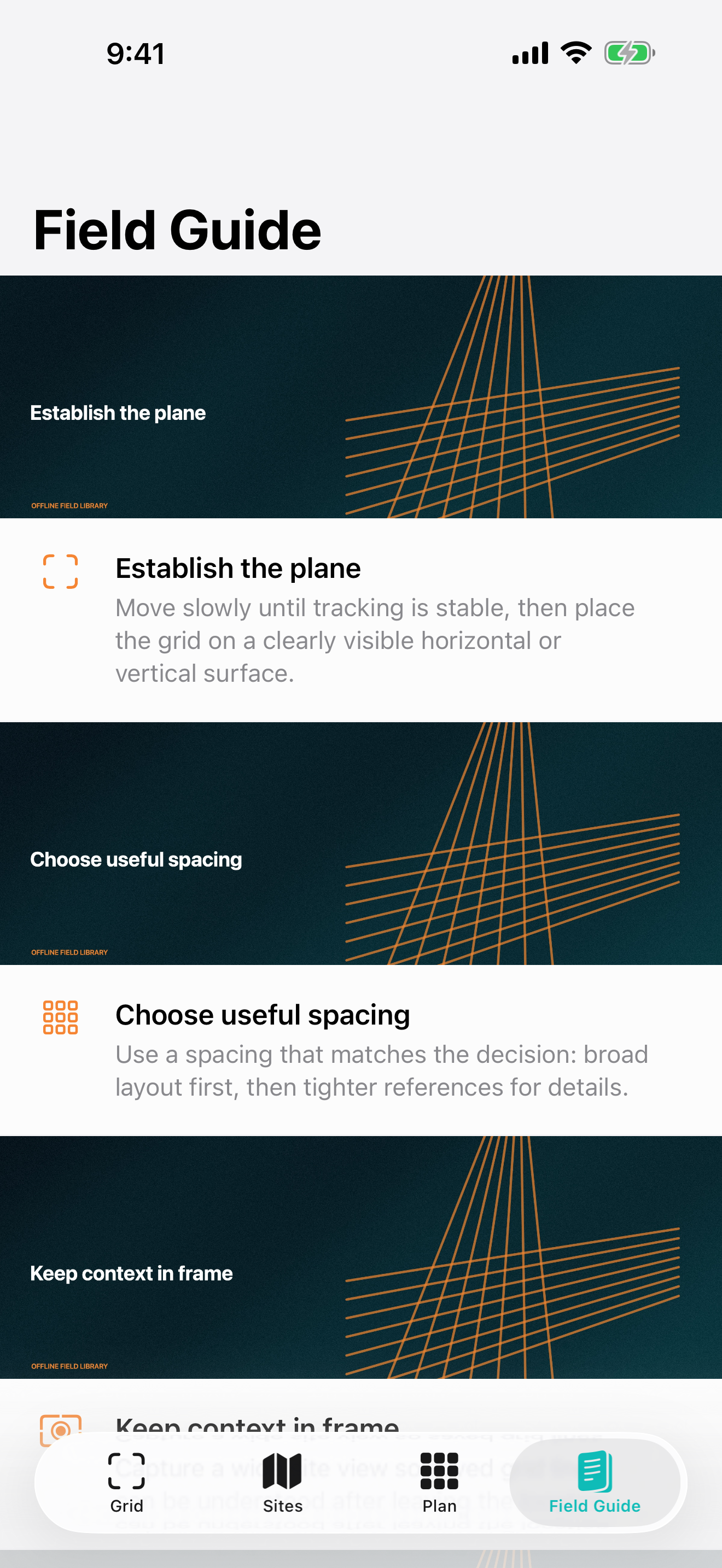

• Offline field guide for reliable AR layout
• Dark mode, Dynamic Type and iPad layouts
• Optional labeled sample sites to explore

EVERYTHING INCLUDED
One purchase, no subscription. No account, ads, tracking, analytics or developer server. Your sites and snapshots stay on your device unless you export them.

LatticeCam is a visualization and planning aid, not a calibrated surveying instrument. AR placement and entered dimensions are estimates. Confirm critical dimensions, boundaries, grade, utilities and safety requirements with appropriate tools and qualified professionals. The live AR grid requires a device with ARKit.
