Wavepane: Scope Trace Lab

About Wavepane: Scope Trace Lab

Wavepane is a focused saved-waveform workbench for electronics engineers, embedded developers, technicians, educators, and serious bench users.

Import one- or two-column CSV data, inspect the full trace, set a visible threshold, and calculate minimum, maximum, mean, RMS, peak-to-peak, estimated frequency, duty cycle, and rising-edge intervals. The bundled review capture exercises the complete workflow without an instrument. Export a concise PDF measurement brief when a trace needs to travel with a bug report or lab note.

KEY FEATURES
- One- and two-column CSV waveform import
- High-density native waveform chart
- Minimum, maximum, mean, RMS, and peak-to-peak

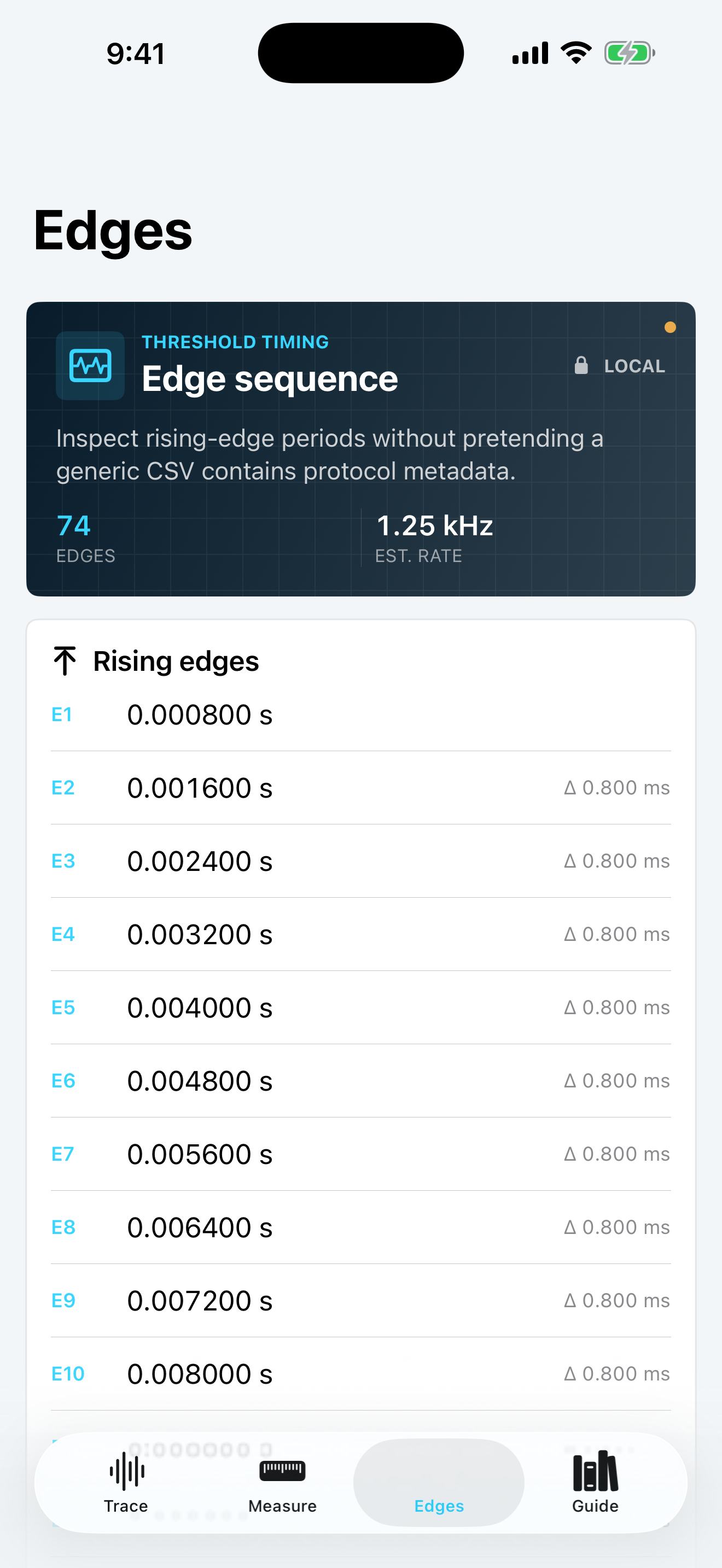

- Threshold duty and rising-edge timing
- Estimated period and frequency
- Explainable measurement PDF export
- Complete hardware-free review trace

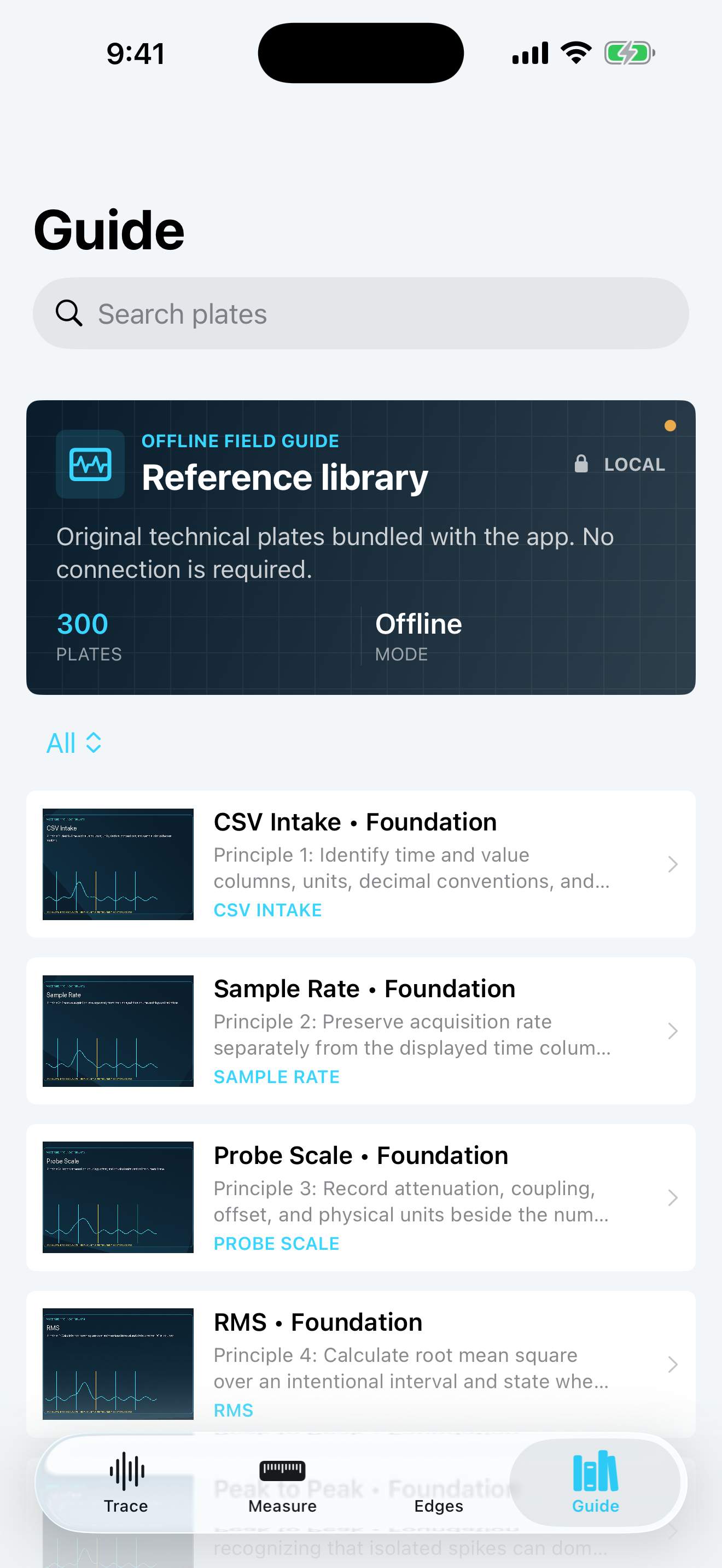

- 300 original offline technical plates
- No account, ads, analytics, tracking, IAP, or subscription

Wavepane analyzes imported numeric samples. Confirm probe scaling, sample interval, acquisition settings, instrument calibration, and vendor-specific file conventions before relying on a result.
